Steel Detailing

Steel Detailing

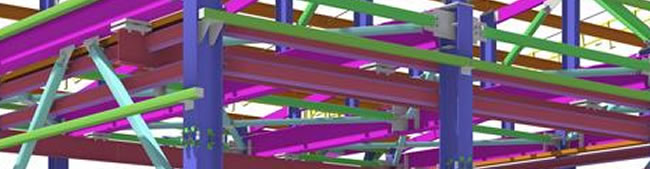

OLPE has an innovative steel detailing department committed to delivering high quality specialist steel detailing services to the engineering and construction industry. We utilise the latest automated steel detailing technology, the 3D computer modelling system TEKLA Structures with which we have successfully completed a large variety of projects and strive  for quality, reliability and maintaining the project schedule.

We can provide an additional resource to your drawing office or act as your drawing office, therefore reducing your overheads (staff, training, hardware, software, maintenance etc)

Simply email us your engineering / architectural plans and we will take the project steel detailing from pre-approval drafts to site erection details.

Our steel detailing service includes

  • General Arrangement Drawings
  • Fabrication Drawings
  • Connection Details
  • Material and Bolt Lists
  • Material Take-Offs
  • Tonnage Estimations
  • Transfer of NC files
